1928310000 | Weidmüller

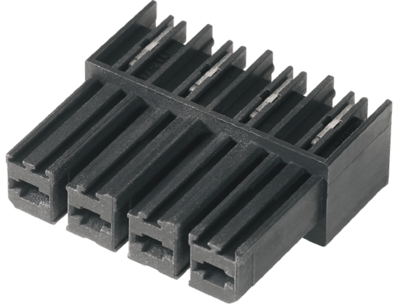

Socket header, 5 pole, pitch 7.62 mm, angled, black, 1928310000
Order No.: 52P6379
EAN: 4032248577514
MPN:
1928310000
BVL 7.62HP/05/90 3.5SN BK BX
Unit Price (€ / pc.)
5.7596 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Female connector, 1928310000, Weidmüller
Printed Circuit Board Connector, lateral closed, THT solder termination, 7.62 mm, no. of poles: 5, 90°, 3.5 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 1 kV | |
| Nennstrom | 56.8 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 5-polig | |
| Rastermaß | 7.62 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
