1928860000 | Weidmüller
Socket header, 4 pole, pitch 7.62 mm, straight, black, 1928860000
Order No.: 52P6408
EAN: 4032248578214
MPN:
1928860000
BVL 7.62HP/04/180SFI 3.5SN BK BX
Unit Price (€ / pc.)
3.3677 € *
Available: 0 pcs.
Available in 5 Days: 91 pcs.
Leadtime: 8 Weeks **

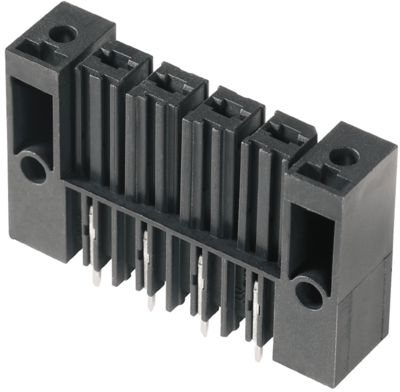

Female connector, 1928860000, Weidmüller
PCB Connector, Screw / Latching Flange inverted, THT Solder Termination, 7.62 mm, Pole Number: 4, 180°, 3.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 1 kV | |
| Rated current | 56.8 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
