1931380000 | Weidmüller

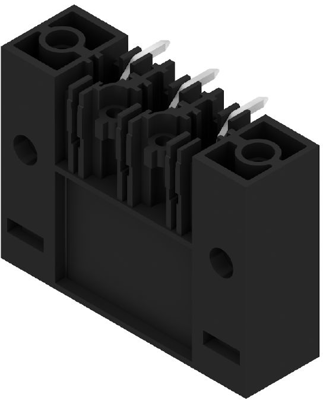

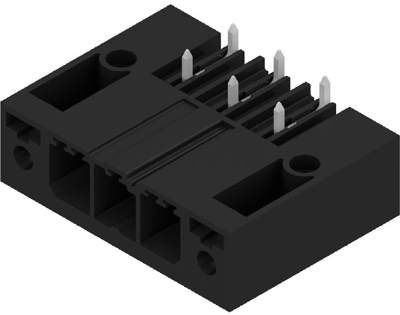

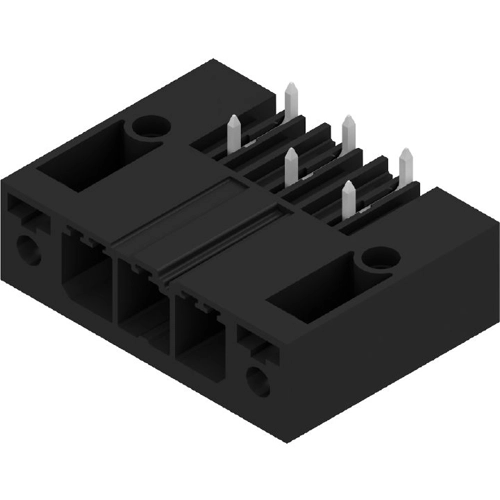

Pin header, 3 pole, pitch 7.62 mm, angled, black, 1931380000
Order No.: 52P6552
EAN: 4032248581412
MPN:
1931380000
SV 7.62HP/03/270F 3.5SN BK BX
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Available in 6 Days: 96 pcs.
Leadtime: On Request **
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.6295 €
50 pcs.
3.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1931380000, Weidmüller
Board Connector, Latching Flange, THT Solder Termination, 7.62 mm, No. of Poles: 3, 270°, 3.5 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Orientation | abgewinkelt | |
| Pin number | 3-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
