1931470000 | Weidmüller

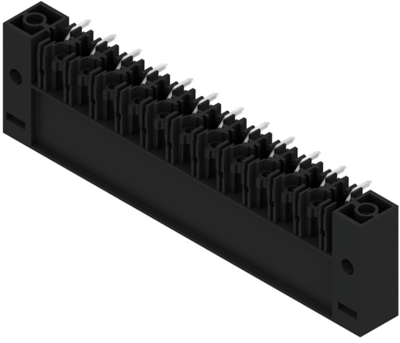

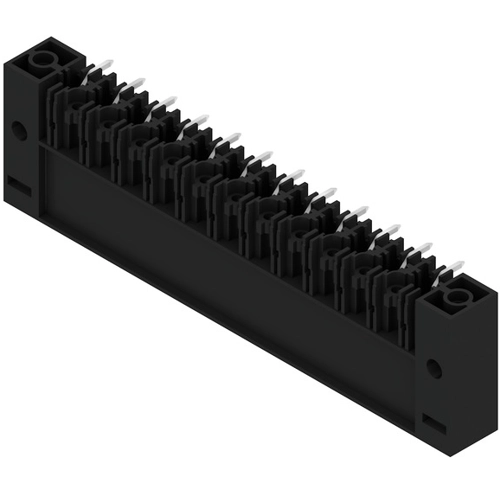

Pin header, 12 pole, pitch 7.62 mm, angled, black, 1931470000
Order No.: 52P6560
EAN: 4032248581504
MPN:
1931470000
SV 7.62HP/12/270F 3.5SN BK BX
Unit Price (€ / pc.)
12.9353 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
12.94 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9353 €
10 pcs.
12.0190 €
50 pcs.
10.9480 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1931470000, Weidmüller
Board Connector, Latching Flange, THT Solder Termination, 7.62 mm, No. of Poles: 12, 270°, 3.5 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Orientation | angled | |
| Pin number | 12 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
