1931520000 | Weidmüller
Pin header, 6 pole, pitch 7.62 mm, angled, black, 1931520000
Order No.: 52P6565
EAN: 4032248581559
MPN:
1931520000
SV 7.62HP/06/270SF 3.5SN BK BX
Unit Price (€ / pc.)
6.9496 € *
Available: 0 pcs.
Available in 6 Days: 60 pcs.
Leadtime: On Request **
Total Price:
6.95 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9496 €
10 pcs.
6.4617 €
50 pcs.
5.8786 €
*incl. VAT plus shipping costs
**Subject to prior sale

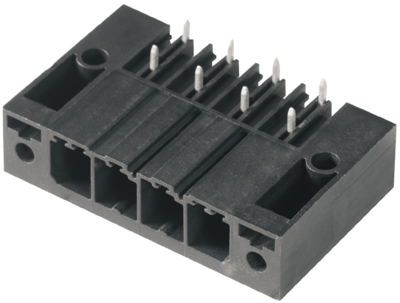

Male connector, 1931520000, Weidmüller
PCB Connector, Screw / Latching Flange, THT Solder Termination, 7.62 mm, No. of Poles: 6, 270°, 3.5 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 1 kV | |
| Nennstrom | 57 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 6-polig | |
| Rastermaß | 7.62 mm |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
