1940810000 | Weidmüller
Socket header, 10 pole, pitch 3.81 mm, straight, orange, 1940810000
Order No.: 52P7007
EAN: 4032248656028
MPN:
1940810000
BCZ 3.81/10/180 SN OR BX
Unit Price (€ / pc.)
5.7239 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

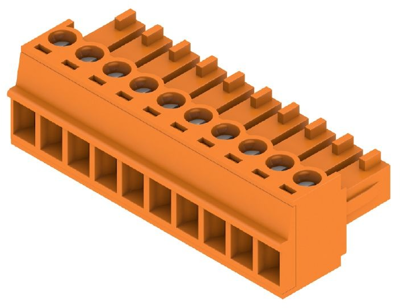

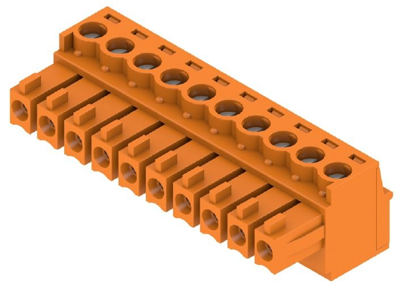

Female connector, 1940810000, Weidmüller
Printed circuit board connector, closed side, 3.81 mm, no. of poles: 10, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Orientierung | gerade | |
| Polzahl | 10-polig | |
| Rastermaß | 3.81 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
