1942830000 | Weidmüller
Pin header, 20 pole, pitch 3.81 mm, angled, black, 1942830000
Order No.: 52P7128
EAN: 4032248654765
MPN:
1942830000
SC 3.81/20/90F 3.2SN BK BX
Unit Price (€ / pc.)
6.2356 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.8072 €
50 pcs.
5.2836 €
*incl. VAT plus shipping costs
**Subject to prior sale

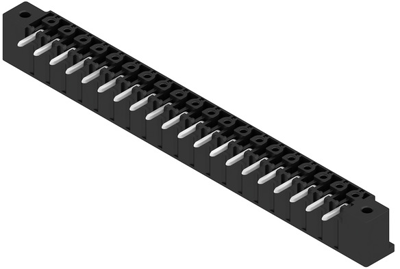

Male connector, 1942830000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 3.81 mm, no. of poles: 20, 90°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
