1943210000 | Weidmüller
Pin header, 5 pole, pitch 3.81 mm, straight, orange, 1943210000
Order No.: 52P7159
EAN: 4032248654383
MPN:
1943210000
SC 3.81/05/180F 3.2SN OR BX
Unit Price (€ / pc.)
2.1301 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
1.9873 €
50 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

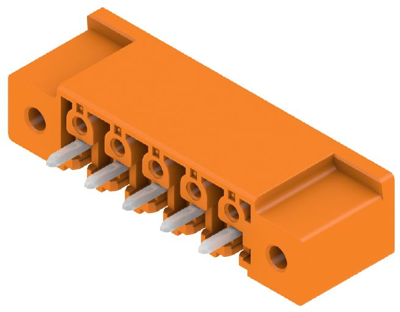

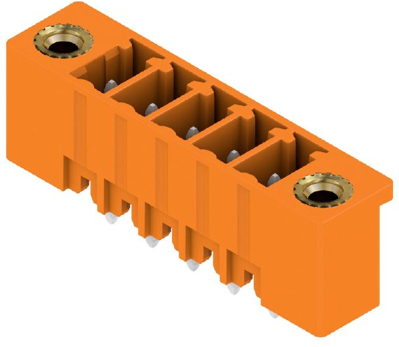

Male connector, 1943210000, Weidmüller
Printed circuit board connector, flange, THT solder termination, 3.81 mm, no. of poles: 5, 180°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
