1944190000 | Weidmüller
Pin header, 12 pole, pitch 5.08 mm, straight, orange, 1944190000
Order No.: 52P7239
EAN: 4032248618774
MPN:
1944190000
BLZP 5.08HC/12/180F SN OR BX
Unit Price (€ / pc.)
9.8175 € *
Available: 0 pcs.
Available in 6 Days: 48 pcs.
Leadtime: On Request **
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
9.1273 €
50 pcs.
8.3181 €
*incl. VAT plus shipping costs
**Subject to prior sale

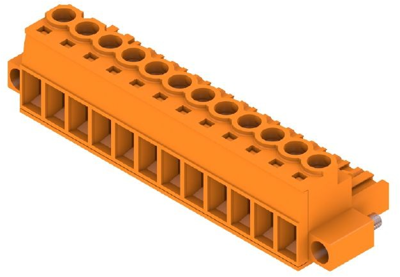

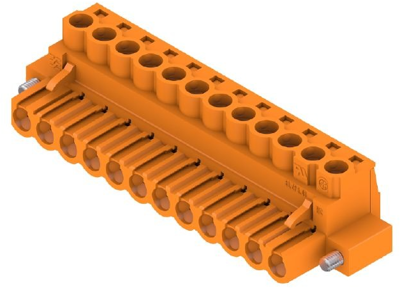

Male connector, 1944190000, Weidmüller
PCB Connector, Male Connector, Flange, 5.08 mm, No. of Poles: 12, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | screw connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 23 A | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
