1944840000 | Weidmüller
Pin header, 3 pole, pitch 5.08 mm, straight, orange, 1944840000
Order No.: 52P7292
EAN: 4032248619443
MPN:
1944840000
BLZP 5.08HC/03/180LR SN OR BX
Unit Price (€ / pc.)
3.1059 € *
Available: 0 pcs.
Available in 6 Days: 144 pcs.
Leadtime: On Request **
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
10 pcs.
2.8917 €
50 pcs.
2.5942 €
*incl. VAT plus shipping costs
**Subject to prior sale

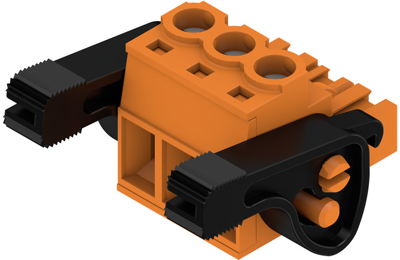

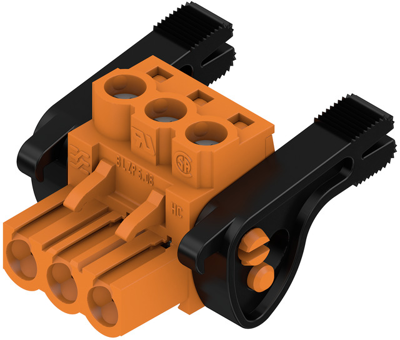

Male connector, 1944840000, Weidmüller
printed circuit board connector, male header, release latch, 5.08 mm, no. of poles: 3, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | screw connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 23 A | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
