1946440000 | Weidmüller

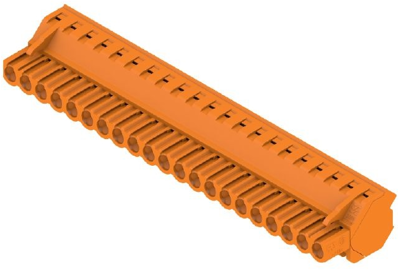

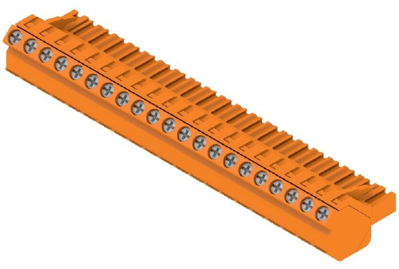

Pin header, 21 pole, pitch 5.08 mm, straight, orange, 1946440000
Order No.: 52P7381
EAN: 4032248622214
MPN:
1946440000
BLZP 5.08HC/21/225 SN OR BX
Unit Price (€ / pc.)
14.7798 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Male connector, 1946440000, Weidmüller
Printed circuit board connector, male connector, closed side, 5.08 mm, no. of poles: 21, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | screw connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 21 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
