1950010000 | Weidmüller
Pin header, 22 pole, pitch 5.08 mm, angled, orange, 1950010000
Order No.: 52P7601
EAN: 4032248627936
MPN:
1950010000
BLZP 5.08HC/22/90F SN OR BX
Unit Price (€ / pc.)
17.9214 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
17.92 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9214 €
10 pcs.
16.6600 €
50 pcs.
15.3272 €
*incl. VAT plus shipping costs
**Subject to prior sale

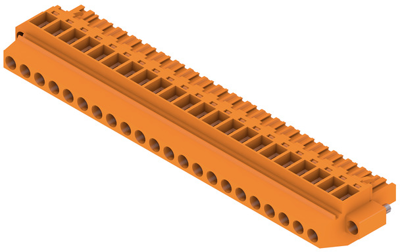

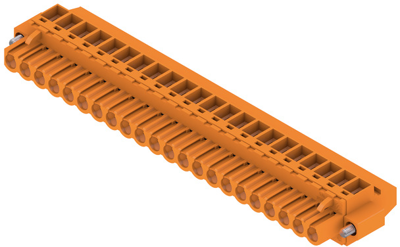

Male connector, 1950010000, Weidmüller
Printed circuit board connector, male header, flange, 5.08 mm, no. of poles: 22, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | screw connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 23 A | |
| Orientation | angled | |
| Pin number | 22 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
