1956180000 | Weidmüller

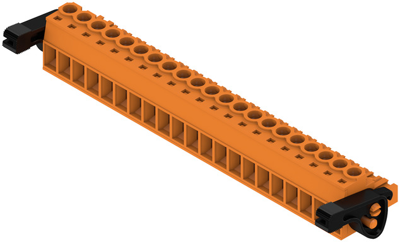

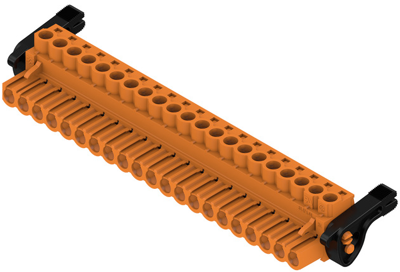

Socket header, 21 pole, pitch 5 mm, straight, orange, 1956180000
Order No.: 52P7847
EAN: 4032248634873
MPN:
1956180000
BLZP 5.00HC/21/180LR SN OR BX
Unit Price (€ / pc.)
16.4934 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
16.49 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4934 €
10 pcs.
15.3391 €
50 pcs.
14.1253 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 1956180000, Weidmüller
PCB connectors, release latch, 5.00 mm, no. of poles: 21, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 400 V | |
| Nennstrom | 23 A | |
| Orientierung | gerade | |
| Polzahl | 21-polig | |
| Rastermaß | 5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
