1956200000 | Weidmüller
Socket header, 19 pole, pitch 5 mm, straight, orange, 1956200000
Order No.: 52P7849
EAN: 4032248634897
MPN:
1956200000
BLZP 5.00HC/19/180LR SN OR BX
Unit Price (€ / pc.)
15.0059 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
15.01 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0059 €
10 pcs.
13.9468 €
50 pcs.
12.8163 €
*incl. VAT plus shipping costs
**Subject to prior sale

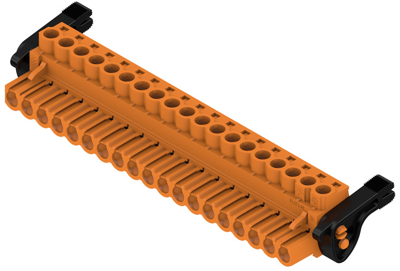

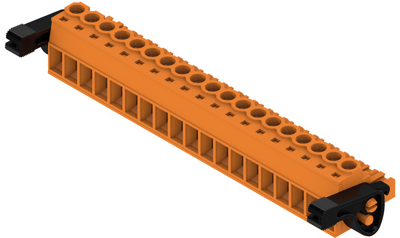

Female connector, 1956200000, Weidmüller
PCB connector, release latch, 5.00 mm, no. of poles: 19, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 400 V | |
| Nennstrom | 23 A | |
| Orientierung | gerade | |
| Polzahl | 19-polig | |
| Rastermaß | 5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
