1957820000 | Weidmüller

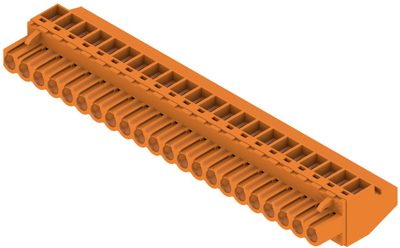

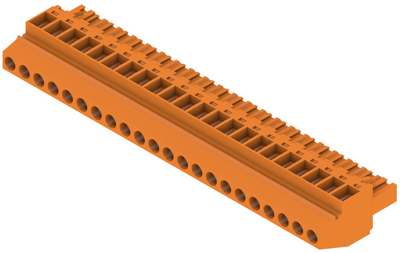

Socket header, 22 pole, pitch 5 mm, angled, orange, 1957820000
Order No.: 52P7880
EAN: 4032248636969
MPN:
1957820000
BLZP 5.00HC/22/90 SN OR BX
Unit Price (€ / pc.)
17.8976 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
17.90 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8976 €
10 pcs.
16.6362 €
50 pcs.
15.2915 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 1957820000, Weidmüller
Printed circuit board connectors, closed sideways, 5.00 mm, no. of poles: 22, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 400 V | |
| Nennstrom | 23 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 22-polig | |
| Rastermaß | 5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
