1958800000 | Weidmüller
Socket header, 9 pole, pitch 5 mm, angled, orange, 1958800000
Order No.: 52P7926
EAN: 4032248637638
MPN:
1958800000
BLZP 5.00HC/09/270 SN OR BX
Unit Price (€ / pc.)
3.5105 € *
Available: 0 pcs.
Available in 5 Days: 72 pcs.
Leadtime: 8 Weeks **

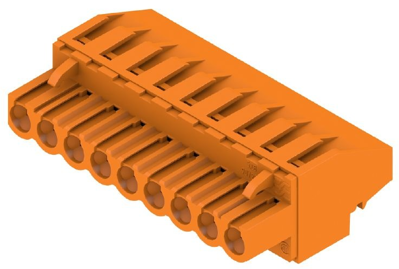

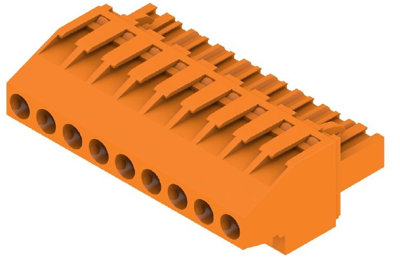

Female connector, 1958800000, Weidmüller
Printed circuit board connector, closed side, 5.00 mm, no. of poles: 9, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Schraubanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | orange | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 400 V | |
| Rated current | 23 A | |
| Orientation | abgewinkelt | |
| Pin number | 9-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
