1970080000 | Weidmüller
Pin header, 8 pole, pitch 3.81 mm, straight, black, 1970080000
Order No.: 52P8338
EAN: 4032248679492
MPN:
1970080000
SCZ 3.81/08/180G SN BK BX
Unit Price (€ / pc.)
5.831 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

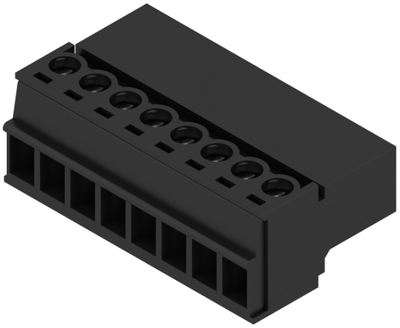

Male connector, 1970080000, Weidmüller
Printed circuit board connector, closed sideways, 3.81 mm, no. of poles: 8, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | clamp connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
