1971590000 | Weidmüller
Socket header, 4 pole, pitch 3.81 mm, straight, black, 1971590000
Order No.: 52P8406
EAN: 4032248680719
MPN:
1971590000
BCF 3.81/04/180F SN BK BX
Unit Price (€ / pc.)
3.7961 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.4867 €
50 pcs.
3.1773 €
100 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale

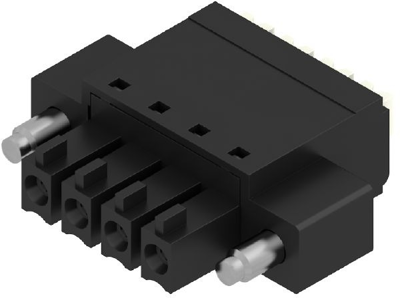

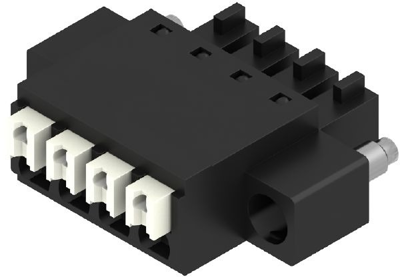

Female connector, 1971590000, Weidmüller
Printed circuit board connectors, female connector, flange, 3.81 mm, no. of poles: 4, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Federanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 3.81 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
