1974290000 | Weidmüller
Pin header, 20 pole, pitch 3.81 mm, angled, black, 1974290000
Order No.: 52P8534
EAN: 4032248683772
MPN:
1974290000
SCD-THR 3.81/20/90F 3.2SN BK BX
Unit Price (€ / pc.)
8.3657 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

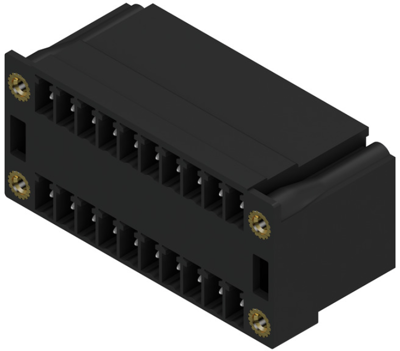

Male connector, 1974290000, Weidmüller
Printed Circuit Board Connector, flange, THT/THR solder termination, 3.81 mm, no. of poles: 20, 90°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
