1975730000 | Weidmüller
Socket header, 5 pole, pitch 3.81 mm, angled, black, 1975730000
Order No.: 52P8580
EAN: 4032248678365
MPN:
1975730000
BCL-SMT 3.81/05/90F 1.5SN BK BX
Unit Price (€ / pc.)
4.3673 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
4.0222 €
50 pcs.
3.6533 €
100 pcs.
3.2963 €
*incl. VAT plus shipping costs
**Subject to prior sale

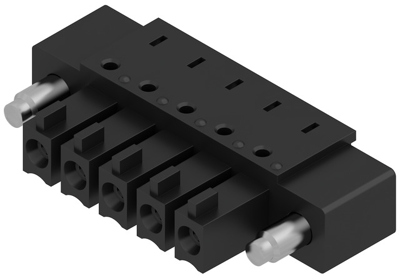

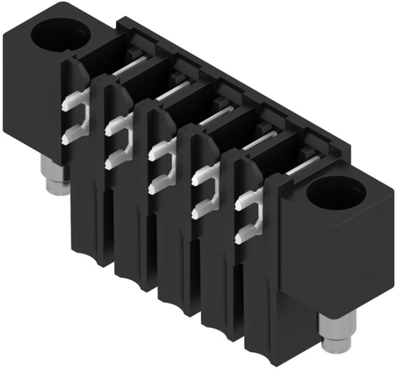

Female connector, 1975730000, Weidmüller
PCB Connector, flange, THT/THR solder termination, 3.81 mm, no. of poles: 5, 90°, 1.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 5-polig | |
| Rastermaß | 3.81 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
