2000440000 | Weidmüller

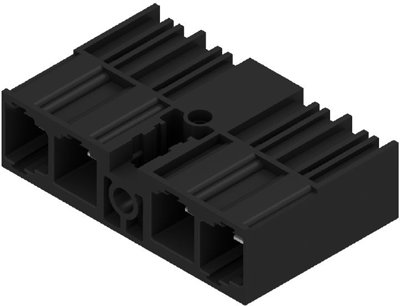

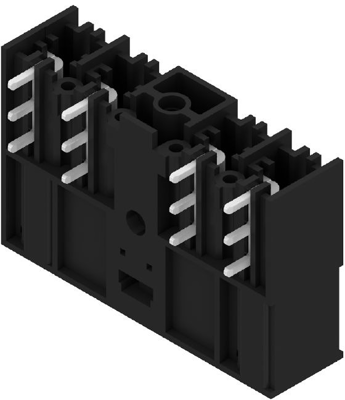

Pin header, 4 pole, pitch 10.16 mm, angled, black, 2000440000
Order No.: 52P9259
EAN: 4050118381962
MPN:
2000440000
SU 10.16IT/04/90MF3 3.5AG BK BX
Unit Price (€ / pc.)
5.9381 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Male connector, 2000440000, Weidmüller
Printed circuit board connector, closed side, center flange, THT solder termination, 10.16 mm, no. of poles: 4, 90°, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | silver-plated | |
| Rated voltage | 1 kV | |
| Rated current | 78.3 A | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Grid | 10.16 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
