2439910000 | Weidmüller
Pin header, 2 pole, pitch 2.5 mm, straight, black, 2439910000
Order No.: 53P1363
EAN: 4050118454680
MPN:
2439910000
SL 2.50/02/180G 3.2SN BK BX
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.5236 €
50 pcs.
0.4760 €
100 pcs.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale

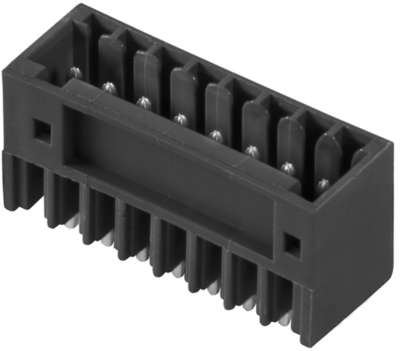

Male connector, 2439910000, Weidmüller
Board Connector, lateral closed, THT solder termination, 2.50 mm, no. of poles: 2, 180°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 2.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
