2439950000 | Weidmüller
Pin header, 6 pole, pitch 2.5 mm, straight, black, 2439950000
Order No.: 53P1367
EAN: 4050118455120
MPN:
2439950000
SL 2.50/06/180G 3.2SN BK BX
Unit Price (€ / pc.)
1.3328 € *
Available: 0 pcs.
Available in 6 Days: 350 pcs.
Leadtime: On Request **

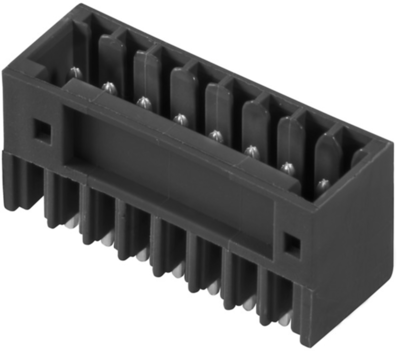

Male connector, 2439950000, Weidmüller
Printed circuit board connector, closed sideways, THT solder termination, 2.50 mm, no. of poles: 6, 180°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 2.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
