2442590000 | Weidmüller
Socket header, 2 pole, pitch 3.81 mm, straight, black, 2442590000
Order No.: 53P1468
EAN: 4050118543308
MPN:
2442590000
BCZ 3.81/02/180LR SN BK BX
Unit Price (€ / pc.)
2.1182 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1182 €
10 pcs.
1.9516 €
50 pcs.
1.7731 €
100 pcs.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale

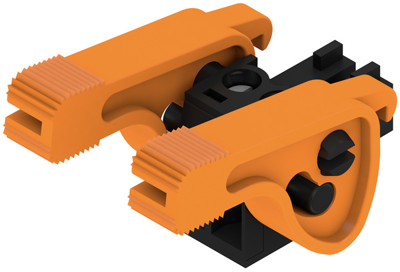

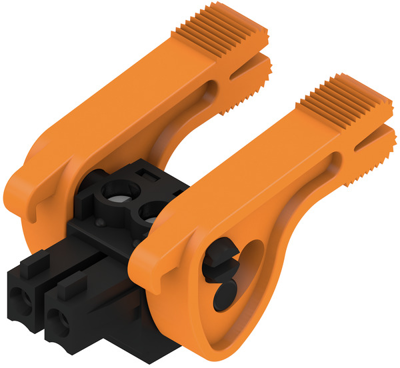

Female connector, 2442590000, Weidmüller
Printed circuit board connector, solder latch, 3.81 mm, no. of poles: 2, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | screw connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
