2442700000 | Weidmüller
Socket header, 12 pole, pitch 3.81 mm, straight, orange, 2442700000
Order No.: 53P1477
EAN: 4050118543209
MPN:
2442700000
BCF 3.81/12/180LR SN OR BX
Unit Price (€ / pc.)
7.1043 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

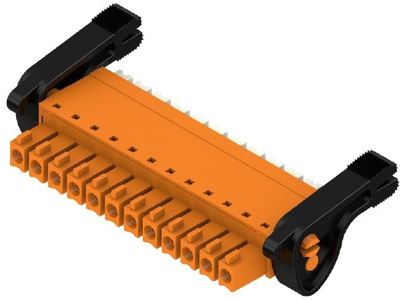

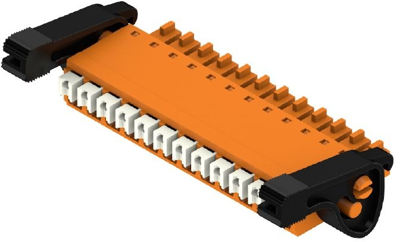

Female connector, 2442700000, Weidmüller

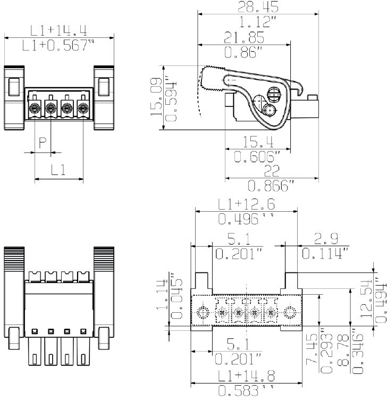

Printed circuit board connector, female connector, release latch, 3.81 mm, no. of poles: 12, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | spring connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
