2442960000 | Weidmüller
Socket header, 5 pole, pitch 3.81 mm, straight, orange, 2442960000
Order No.: 53P1503
EAN: 4050118542943
MPN:
2442960000
BCF 3.81/05/180LRZE SN OR BX
As a private customer, you can buy this item as soon as we have it back in stock.

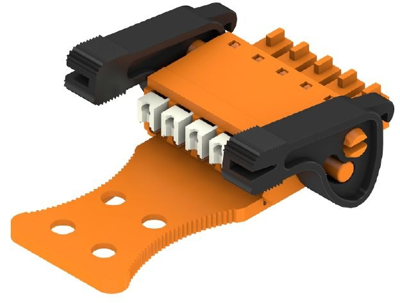

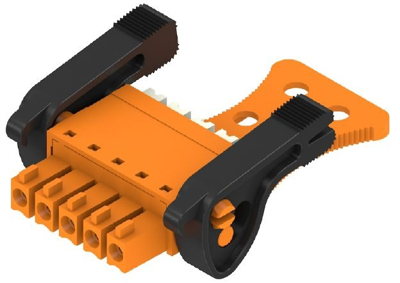

Female connector, 2442960000, Weidmüller
Printed circuit board connector, female connector, release latch, strain relief, 3.81 mm, no. of poles: 5, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | spring connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
