1330780000 | Weidmüller

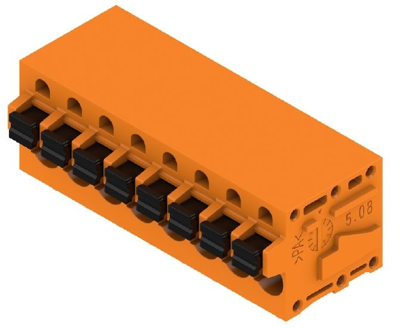

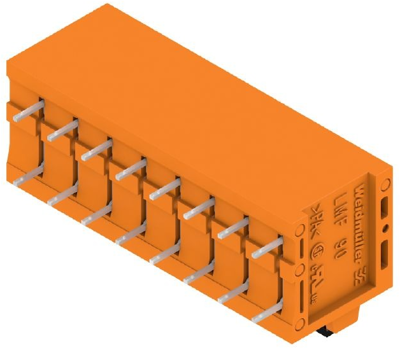

PCB terminal, 8 pole, pitch 5.08 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1330780000
Order No.: 51P1420
EAN: 4050118134483
MPN:
1330780000
LMF 5.08/08/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
3.6533 € *
Available: 0 pcs.
Available in 6 Days: 70 pcs.
Leadtime: 3 Weeks **
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
10 pcs.
3.3915 €
50 pcs.
3.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1330780000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 8, 90°, 3.5 mm, orange, PUSH IN, 2.5 mm², Box
Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point

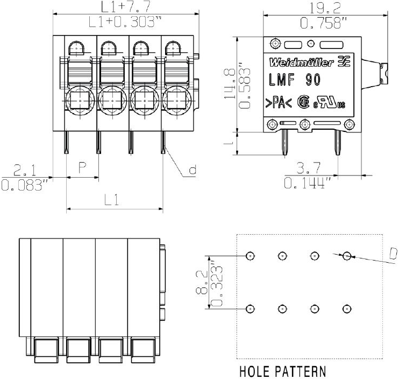

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Breite | 43.26 mm | |
| Farbe | orange | |
| Höhe | 18.3 mm | |
| Leiterquerschnitt | 0,12-2,5 mm² | |
| Nennspannung | 300 V | |
| Nennstrom | 20 A | |
| Polzahl | 8-polig | |
| Rastermaß | 5.08 mm | |
| Tiefe | 19.2 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
