1331350000 | Weidmüller
PCB terminal, 18 pole, pitch 5.08 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1331350000
Order No.: 51P1470
EAN: 4050118135220
MPN:
1331350000
LMF 5.08/18/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
7.9016 € *
Available: 0 pcs.
Available in 6 Days: 75 pcs.
Leadtime: 2 Weeks **
Total Price:
7.90 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9016 €
10 pcs.
7.3423 €
50 pcs.
6.6759 €
*incl. VAT plus shipping costs
**Subject to prior sale

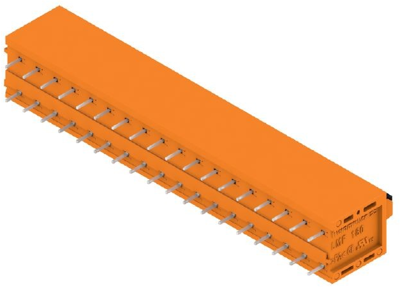

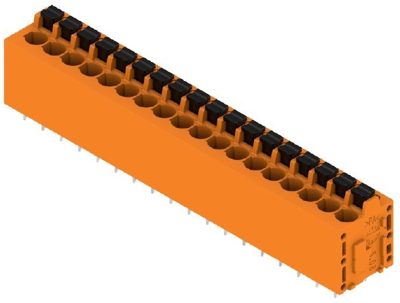

PCB terminal, 1331350000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 18, 180°, 3.5 mm, orange, PUSH IN, 2.5 mm², Box
Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Breite | 94.06 mm | |
| Farbe | orange | |
| Höhe | 22.7 mm | |
| Leiterquerschnitt | 0,12-2,5 mm² | |
| Nennspannung | 300 V | |
| Nennstrom | 20 A | |
| Polzahl | 18-polig | |
| Rastermaß | 5.08 mm | |
| Tiefe | 14.8 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
