1331530000 | Weidmüller
PCB terminal, 11 pole, pitch 5.08 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1331530000
Order No.: 51P1486
EAN: 4050118135275
MPN:
1331530000
LMFS 5.08/11/180 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
Unit Price (€ / pc.)
4.4863 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4863 €
10 pcs.
4.1293 €
50 pcs.
3.7604 €
100 pcs.
3.3796 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1331530000, Weidmüller

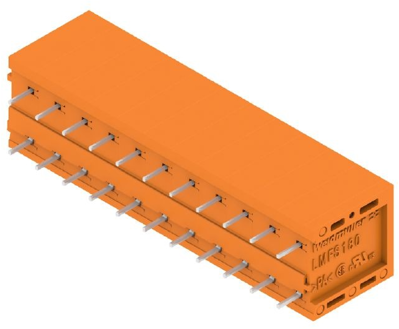

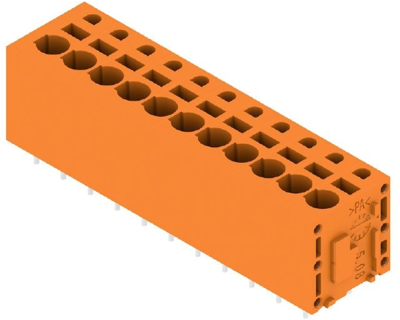

PCB terminal, 5.08 mm, no. of poles: 11, 180°, 3.5 mm, orange, PUSH IN without actuating element, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

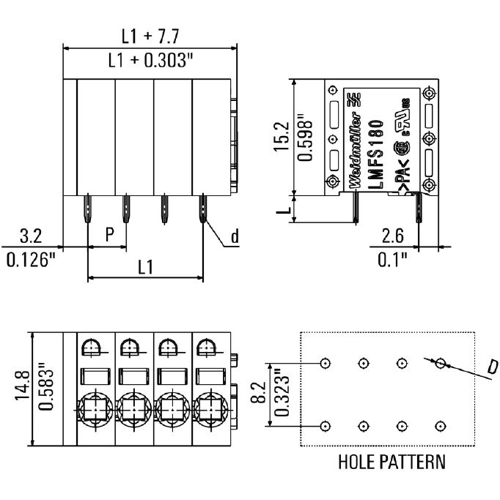

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-12 | |
| Width | 58.5 mm | |
| Colour | orange | |
| Height | 18.7 mm | |
| Cable cross-section | 0.12-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 11 pole | |
| Grid | 5.08 mm | |
| Depth | 14.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
