1331810000 | Weidmüller

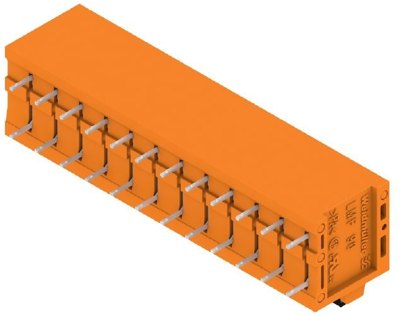

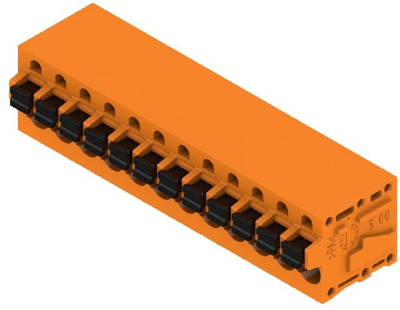

PCB terminal, 12 pole, pitch 5 mm, AWG 24-12, 20 A, spring-clamp connection, orange, 1331810000
Order No.: 51P1505
EAN: 4050118135558
MPN:
1331810000
LMF 5.00/12/90 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMF
As a private customer, you can buy this item as soon as we have it back in stock.
PCB terminal, 1331810000, Weidmüller
PCB terminal, 5.00 mm, no. of poles: 12, 90°, 3.5 mm, orange, PUSH IN, 2.5 mm², Box
Features
- PUSH IN connection system
- LMF with pusher for opening the terminal point
- LMFS without pusher, the terminal point is opened with a screwdriver
- Integrated test point
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-12 | |
| Width | 62.7 mm | |
| Colour | orange | |
| Height | 18.3 mm | |
| Cable cross-section | 0.12-2.5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 20 A | |
| Pin number | 12 pole | |
| Grid | 5 mm | |
| Depth | 14.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
