1356840000 | Weidmüller

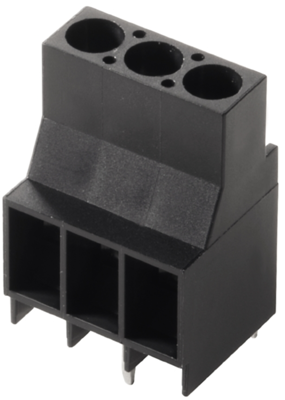

PCB terminal, 3 pole, pitch 6.35 mm, AWG 26-12, 30 A, screw connection, black, 1356840000
Order No.: 51P2292
EAN: 4050118214628
MPN:
1356840000
LL 6.35/03/90V 5.0SN BK BX
Series: OMNIMATE Signal - Serie LL
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
2.1777 €
50 pcs.
1.9754 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1356840000, Weidmüller
PCB terminal, 6.35 mm, no. of poles: 3, 90°, 5 mm, black, clamping yoke connection, 6 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

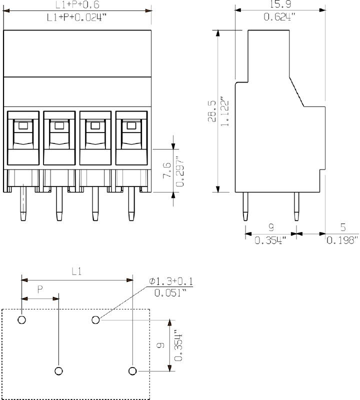

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 19.65 mm | |
| Colour | black | |
| Height | 33.5 mm | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated voltage | 600 V | |
| Rated current | 30 A | |
| Pin number | 3 pole | |
| Grid | 6.35 mm | |
| Depth | 15.85 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
