1386820000 | Weidmüller
PCB terminal, 8 pole, pitch 15 mm, AWG 20-1, 127 A, screw connection, black, 1386820000
Order No.: 51P2762
EAN: 4050118187526
MPN:
1386820000
LXXX 15.00/08/90FR 4.5SN BK BX
Series: OMNIMATE Power - Serie LXXX
Unit Price (€ / pc.)
29.7143 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

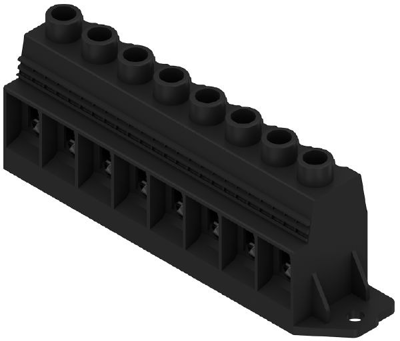

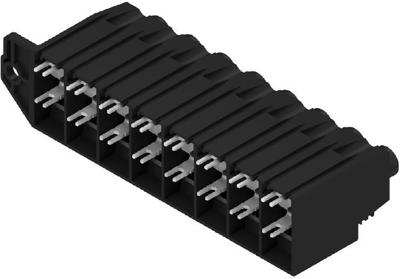

Print clamp, 1386820000, Weidmüller
PCB terminal, 15.00 mm, no. of poles: 8, 90°, 4.5 mm, black, clamping yoke connection, 50 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

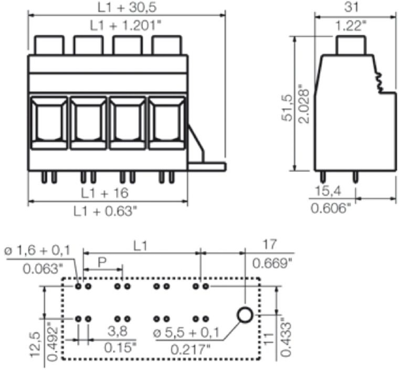

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-1 | |
| Width | 135.5 mm | |
| Colour | black | |
| Height | 56 mm | |
| Cable cross-section | 0.5-50 mm² | |
| Rated voltage | 600 V | |
| Rated current | 127 A | |
| Pin number | 8 pole | |
| Grid | 15 mm | |
| Depth | 31 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
