1561170000 | Weidmüller
PCB terminal, 8 pole, pitch 3.5 mm, AWG 28-14, 10 A, screw connection, black, 1561170000
Order No.: 51P6476
EAN: 4050118366235
MPN:
1561170000
LM 3.50/08/90 3.2SN BK BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
4.2721 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.27 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2721 €
10 pcs.
3.9389 €
50 pcs.
3.5819 €
100 pcs.
3.2249 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1561170000, Weidmüller

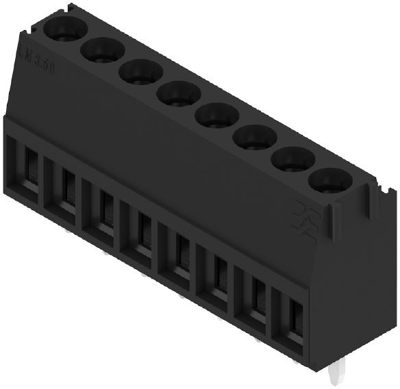

PCB terminal, 3.50 mm, no. of poles: 8, 90°, black, clamping yoke connection, 2.08 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

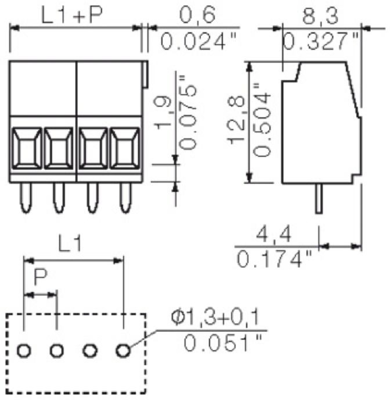

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 28-14 | |
| Width | 28.6 mm | |
| Colour | black | |
| Height | 16 mm | |
| Cable cross-section | 0.08-2.08 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 8 pole | |
| Grid | 3.5 mm | |
| Depth | 8.3 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
