1716720000 | Weidmüller

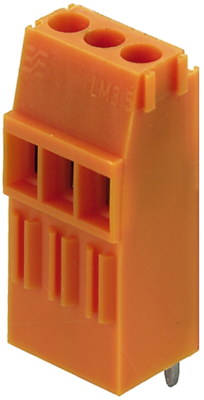

PCB terminal, 3 pole, pitch 3.5 mm, AWG 28-14, 10 A, screw connection, orange, 1716720000
Order No.: 51P9522
EAN: 4008190396275
MPN:
1716720000
LM1N 3.50/03/90 3.2SN OR BX
Series: OMNIMATE Signal - Serie LM
Unit Price (€ / pc.)
2.2253 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2253 €
10 pcs.
2.0825 €
50 pcs.
1.8683 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1716720000, Weidmüller
PCB terminal, 3.50 mm, no. of poles: 3, 90°, 3.2 mm, orange, clamping yoke connection, 2.08 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 28-14 | |
| Width | 11.1 mm | |
| Colour | orange | |
| Height | 27.3 mm | |
| Cable cross-section | 0.08-2.08 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 3 pole | |
| Grid | 3.5 mm | |
| Depth | 9.15 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
