1764960000 | Weidmüller

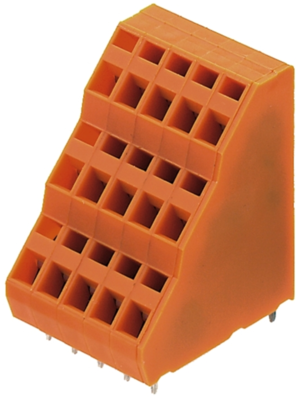

PCB terminal, 24 pole, pitch 5.08 mm, AWG 26-14, 10 A, spring-clamp connection, orange, 1764960000
Order No.: 52P0696
EAN: 4032248102884
MPN:
1764960000
LM3RZF 5.08/24/135 3.5SN OR BX
Series: OMNIMATE Signal - Serie LMZF
Unit Price (€ / pc.)
18.3260 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
18.33 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3260 €
10 pcs.
16.8623 €
50 pcs.
15.3510 €
100 pcs.
13.8159 €
*incl. VAT plus shipping costs
**Subject to prior sale
Print clamp, 1764960000, Weidmüller
PCB terminal, 5.08 mm, no. of poles: 24, 135°, 3.5 mm, orange, tension clamp connection, 2.5 mm², Box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.

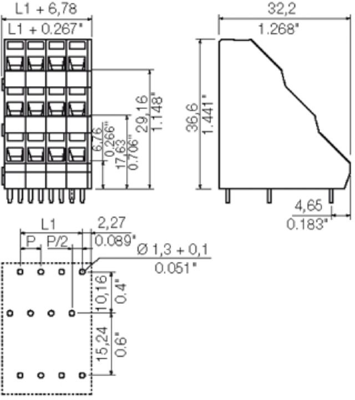

Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 26-14 | |
| Width | 41.34 mm | |
| Colour | orange | |
| Height | 40.1 mm | |
| Cable cross-section | 0,13-2,5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 24-polig | |
| Grid | 5.08 mm | |
| Depth | 32.2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
