1783680000 | Weidmüller

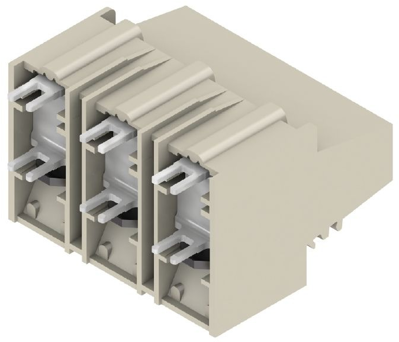

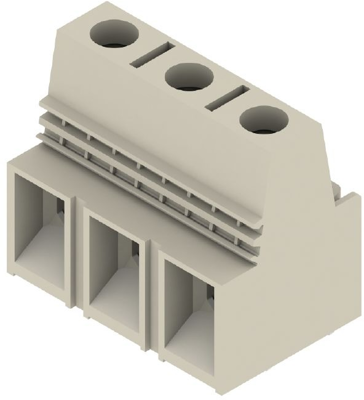

PCB terminal, 3 pole, pitch 15 mm, AWG 16-4, 85 A, screw connection, pebble gray, 1783680000
Order No.: 52P1328
EAN: 4032248184934
MPN:
1783680000
LX 15.00/03/90 4.5SN GY BX
Series: OMNIMATE Power - Serie LX
Unit Price (€ / pc.)
11.186 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Print clamp, 1783680000, Weidmüller
PCB terminal, 15.00 mm, no. of poles: 3, 90°, 4.5 mm, pebble grey, clamping yoke connection, 25 mm², box
PCB terminal with application-oriented connection technology for simple and safe transmission of data directly to the PCB.
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 16-4 | |
| Width | 43 mm | |
| Colour | kieselgrau | |
| Height | 41.5 mm | |
| Cable cross-section | 1,31-25 mm² | |
| Rated voltage | 600 V | |
| Rated current | 85 A | |
| Pin number | 3-polig | |
| Grid | 15 mm | |
| Depth | 29.1 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
