1824620000 | Weidmüller
PCB terminal, 2 pole, pitch 3.81 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1824620000
Order No.: 09H1518
EAN: 4032248327003
MPN:
1824620000
LSF-SMT 3.81/02/90 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3689 €
10 pcs.
0.3213 €
50 pcs.
0.2844 €
100 pcs.
0.2499 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1824620000, WEIDMÜLLER
Printed circuit board terminals, 3.81 mm, number of poles: 2, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

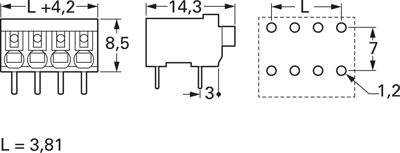

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 8.01 mm | |
| Farbe | schwarz | |
| Höhe | 13.15 mm | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 10 A | |
| Polzahl | 2-polig | |
| Rastermaß | 3.81 mm | |
| Tiefe | 14.75 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
