1824760000 | Weidmüller

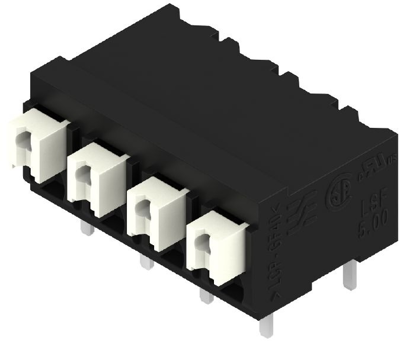

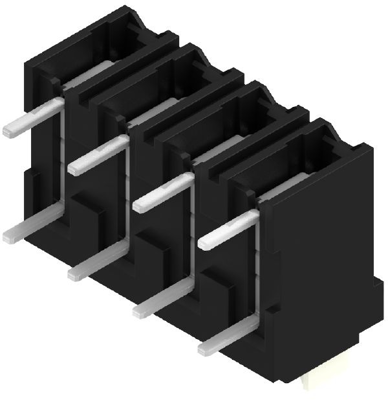

PCB terminal, 4 pole, pitch 5 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1824760000
Order No.: 09H1624
EAN: 4032248327317
MPN:
1824760000
LSF-SMT 5.00/04/90 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
1.2852 € *
Available: 2 pcs.
Leadtime: 3 Weeks **
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
10 pcs.
1.1781 €
50 pcs.
1.0829 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1824760000, WEIDMÜLLER
Printed circuit board terminals, 5.00 mm, number of poles: 4, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

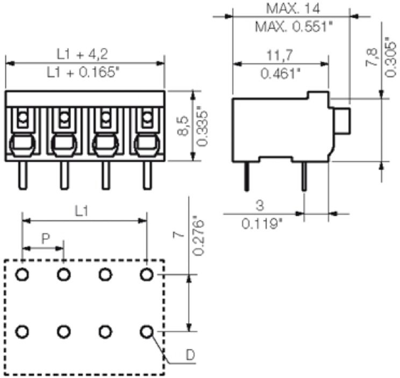

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 19.2 mm | |
| Farbe | schwarz | |
| Höhe | 13.15 mm | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 10 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 14.75 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Stange mit 28 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
