1824810000 | Weidmüller
PCB terminal, 2 pole, pitch 5.08 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1824810000
Order No.: 09H1634
EAN: 4032248327362
MPN:
1824810000
LSF-SMT 5.08/02/90 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
0.7140 € *
Available: 0 pcs.
Available in 6 Days: 295 pcs.
Leadtime: 1 Week **
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6545 €
50 pcs.
0.5831 €
100 pcs.
0.5117 €
500 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale

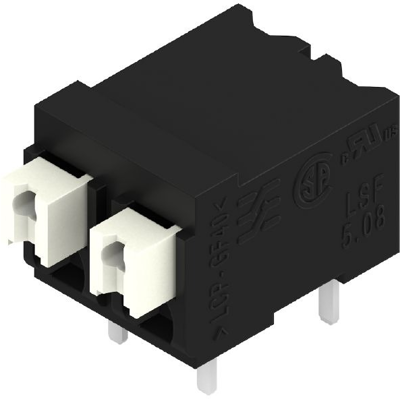

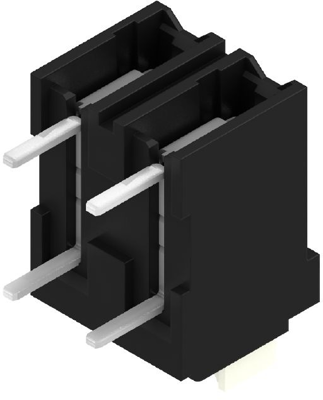

PCB terminal, 1824810000, WEIDMÜLLER
Printed circuit board terminals, 5.08 mm, number of poles: 2, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

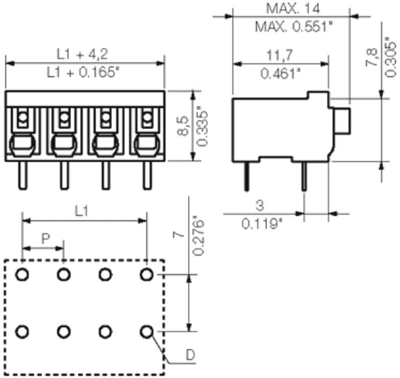

Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 28-14 | |
| Width | 9.28 mm | |
| Colour | schwarz | |
| Height | 13.15 mm | |
| Cable cross-section | 0,13-1,5 mm² | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Pin number | 2-polig | |
| Grid | 5.08 mm | |
| Depth | 14.75 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Stange mit 59 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
