1824840000 | Weidmüller
PCB terminal, 5 pole, pitch 5.08 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1824840000
Order No.: 09H1640
EAN: 4032248327409
MPN:
1824840000
LSF-SMT 5.08/05/90 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.4161 €
50 pcs.
1.2852 €
*incl. VAT plus shipping costs
**Subject to prior sale

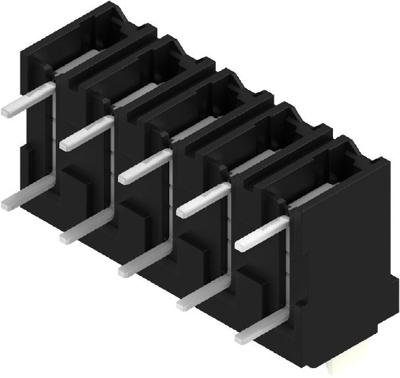

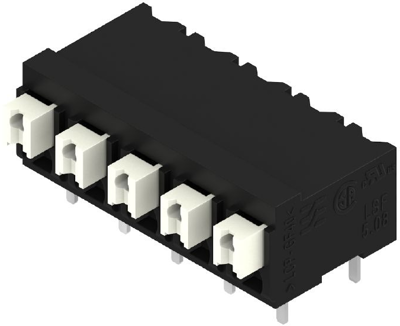

PCB terminal, 1824840000, WEIDMÜLLER

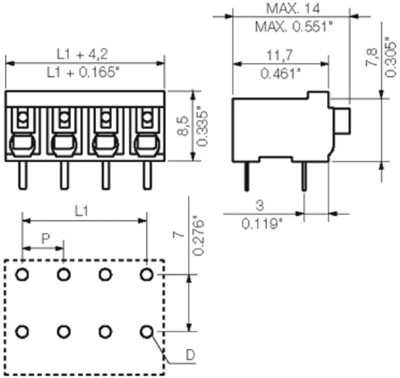

Printed circuit board terminals, 5.08 mm, number of poles: 5, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 24.52 mm | |
| Farbe | schwarz | |
| Höhe | 13.15 mm | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 10 A | |
| Polzahl | 5-polig | |
| Rastermaß | 5.08 mm | |
| Tiefe | 14.75 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Stange mit 22 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
