1825640000 | Weidmüller
PCB terminal, 2 pole, pitch 3.5 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1825640000
Order No.: 09H1580
EAN: 4032248328239
MPN:
1825640000
LSF-SMT 3.50/02/180 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
0.6426 € *
Available: 291 pcs.
Leadtime: 1 Week **
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.5950 €
50 pcs.
0.5355 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1825640000, WEIDMÜLLER

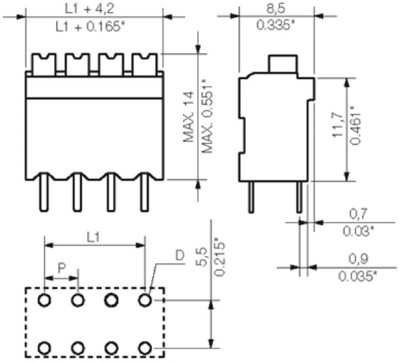

Printed circuit board terminals, 3.50 mm, number of poles: 2, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 7.7 mm | |
| Farbe | schwarz | |
| Höhe | 17.5 mm | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 10 A | |
| Polzahl | 2-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 7.8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Stange mit 71 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
