1825790000 | Weidmüller

PCB terminal, 2 pole, pitch 3.81 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1825790000

Order No.: 09H1598
EAN: 4032248328475
MPN:
1825790000
LSF-SMT 3.81/02/180 3.5SN BK TU
Series: LSF-SMT
Weidmüller

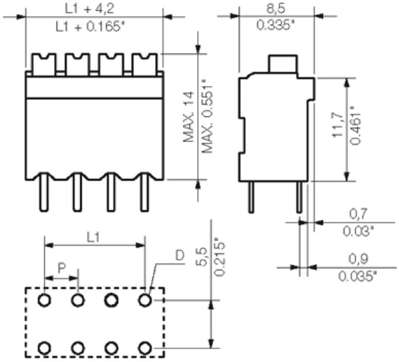

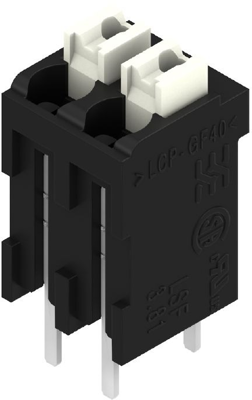

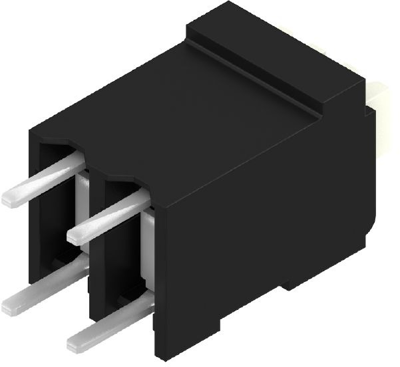

1825790000 Weidmüller PCB Terminal Blocks Image 1
1825790000 Weidmüller PCB Terminal Blocks Image 2
1825790000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 6 Days: 345 pcs.
Leadtime: On Request **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3689 €
10 pcs.
0.3213 €
50 pcs.
0.2844 €
100 pcs.
0.2499 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1825790000, WEIDMÜLLER

Printed circuit board terminals, 3.81 mm, number of poles: 2, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².

Features

  • PCB terminal for fully automatic assembly in reflow soldering
  • With push-in conductor connection system
  • Conductor inserted and slider operated in same direction
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 28-14
Width 8.01 mm
Colour black
Height 17.5 mm
Cable cross-section 1.5 mm²
Rated voltage 160 V
Rated current 10 A
Pin number 2 pole
Grid 3.81 mm
Depth 7.8 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bar with 69 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
