1825800000 | Weidmüller

PCB terminal, 3 pole, pitch 3.81 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1825800000

Order No.: 09H1600
EAN: 4032248328482
MPN:
1825800000
LSF-SMT 3.81/03/180 3.5SN BK TU
Series: LSF-SMT
Weidmüller

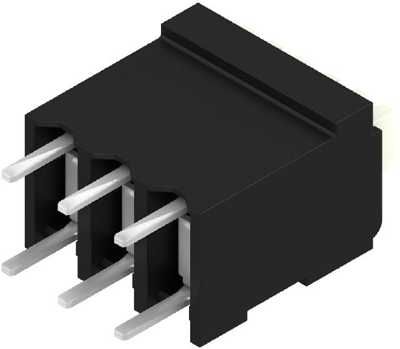

1825800000 Weidmüller PCB Terminal Blocks Image 1

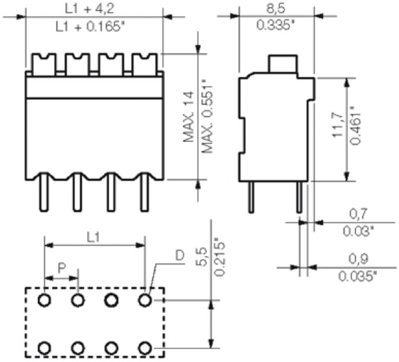

1825800000 Weidmüller PCB Terminal Blocks Image 2

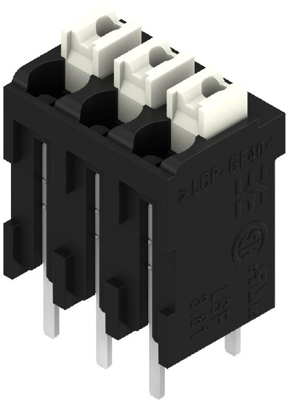

1825800000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Available in 6 Days: 230 pcs.
Leadtime: On Request **
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
10 pcs.
0.8925 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1825800000, WEIDMÜLLER

Printed circuit board terminals, 3.81 mm, number of poles: 3, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².

Features

  • PCB terminal for fully automatic assembly in reflow soldering
  • With push-in conductor connection system
  • Conductor inserted and slider operated in same direction
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 28-14
Width 11.82 mm
Colour black
Height 17.5 mm
Cable cross-section 1.5 mm²
Rated voltage 160 V
Rated current 10 A
Pin number 3 pole
Grid 3.81 mm
Depth 7.8 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bar with 46 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
