1825970000 | Weidmüller

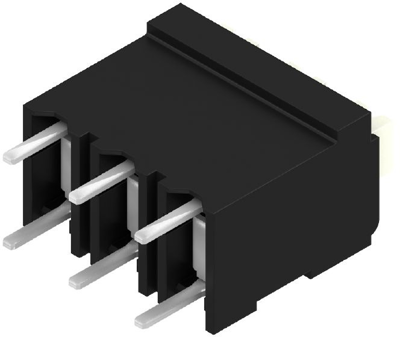

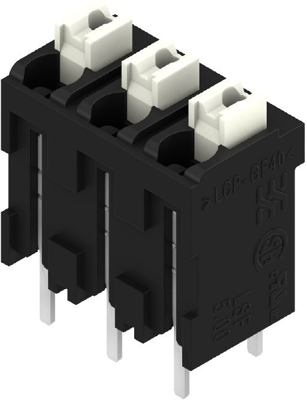

PCB terminal, 3 pole, pitch 5 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1825970000
Order No.: 09H1682
EAN: 4032248328697
MPN:
1825970000
LSF-SMT 5.00/03/180 3.5SN BK TU
Series: LSF-SMT
Unit Price (€ / pc.)
0.9520 € *
Available: 36 pcs.
Available in 6 Days: 195 pcs.
Leadtime: On Request **
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9520 €
195 pcs.
0.8568 €
975 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1825970000, WEIDMÜLLER
Printed circuit board terminals, 5.00 mm, number of poles: 3, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 14.2 mm | |
| Farbe | schwarz | |
| Höhe | 17.5 mm | |
| Kontaktabstand | RM 5/5,08 | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 250 V | |
| Nennstrom | 10 A | |
| Polzahl | 3-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 7.8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Stange mit 39 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
