1825990000 | Weidmüller

PCB terminal, 5 pole, pitch 5 mm, AWG 28-14, 10 A, spring-clamp connection, black, 1825990000

Order No.: 09H1686
EAN: 4032248328710
MPN:
1825990000
LSF-SMT 5.00/05/180 3.5SN BK TU
Series: LSF-SMT
Weidmüller

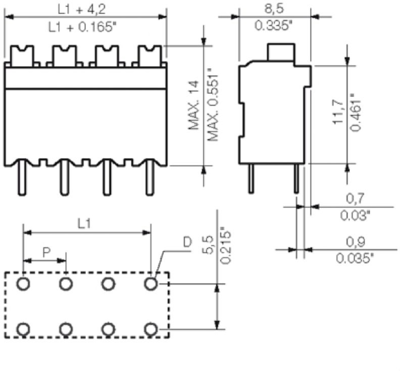

1825990000 Weidmüller PCB Terminal Blocks Image 1

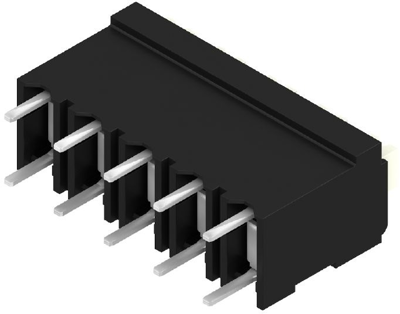

1825990000 Weidmüller PCB Terminal Blocks Image 2

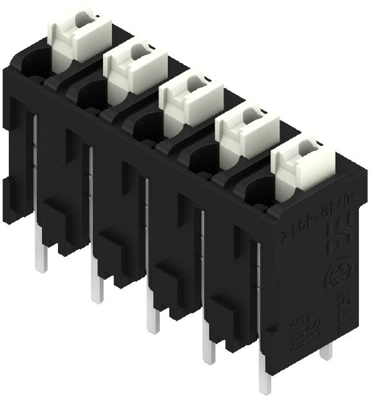

1825990000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 19 pcs.
Available in 6 Days: 110 pcs.
Leadtime: On Request **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4756 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1825990000, WEIDMÜLLER

Printed circuit board terminals, 5.00 mm, number of poles: 5, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².

Features

  • PCB terminal for fully automatic assembly in reflow soldering
  • With push-in conductor connection system
  • Conductor inserted and slider operated in same direction
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 28-14
Width 24.2 mm
Colour black
Height 17.5 mm
Cable cross-section 1.5 mm²
Rated voltage 250 V
Rated current 10 A
Pin number 5 pole
Grid 5 mm
Depth 7.8 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bar with 22 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
