1869690000 | Weidmüller

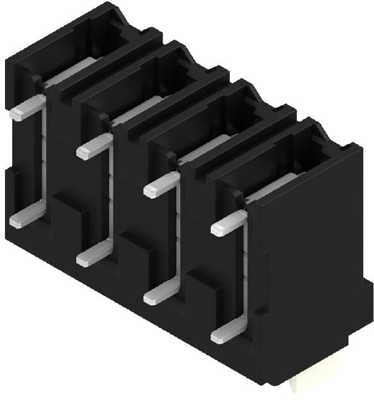

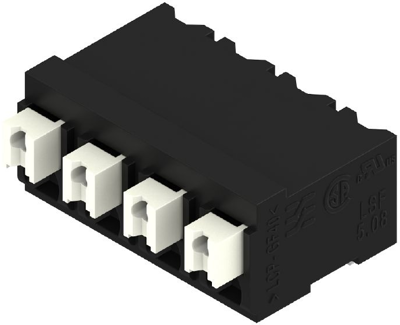

PCB terminal, 4 pole, pitch 5.08 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1869690000
Order No.: 52P4036
EAN: 4032248445554
MPN:
1869690000
LSF-SMT 5.08/04/90 1.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
1.3090 € *
Available: 0 pcs.
Available in 6 Days: 56 pcs.
Leadtime: On Request **
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.1900 €
50 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1869690000, WEIDMÜLLER
Printed circuit board terminals, 5.08 mm, number of poles: 4, 90°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

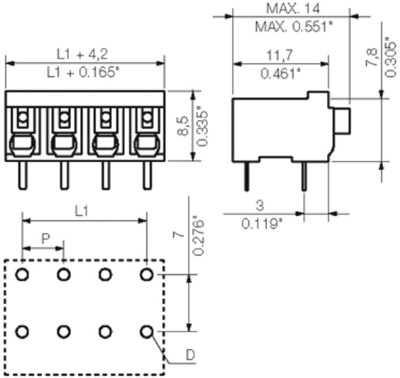

Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 28-14 | |
| Width | 19.44 mm | |
| Colour | schwarz | |
| Height | 10 mm | |
| Cable cross-section | 0,13-1,5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 12 A | |
| Pin number | 4-polig | |
| Grid | 5.08 mm | |
| Depth | 14.75 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
