1869900000 | Weidmüller

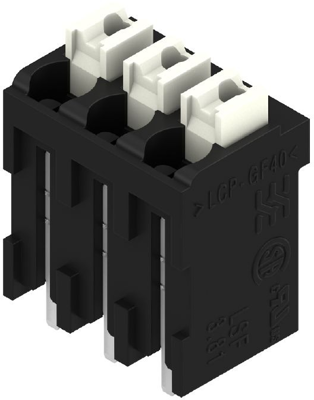

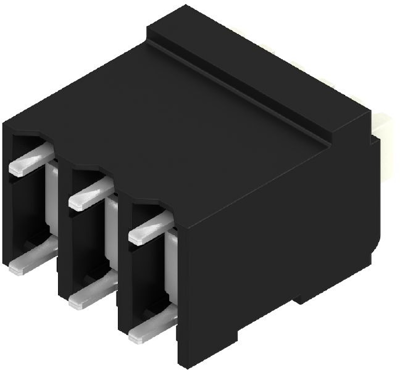

PCB terminal, 3 pole, pitch 3.81 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1869900000
Order No.: 52P4066
EAN: 4032248449767
MPN:
1869900000
LSF-SMT 3.81/03/180 1.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
10 pcs.
0.8925 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1869900000, WEIDMÜLLER
Printed circuit board terminals, 3.81 mm, number of poles: 3, 180°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

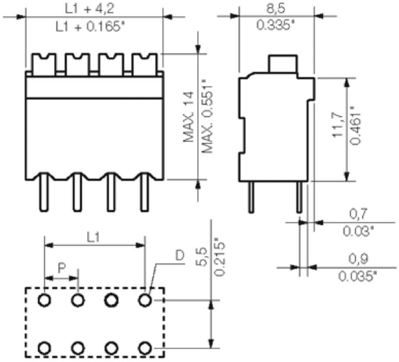

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 11.82 mm | |
| Farbe | schwarz | |
| Höhe | 15.5 mm | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 300 V | |
| Nennstrom | 12 A | |
| Polzahl | 3-polig | |
| Rastermaß | 3.81 mm | |
| Tiefe | 7.8 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
