1870430000 | Weidmüller

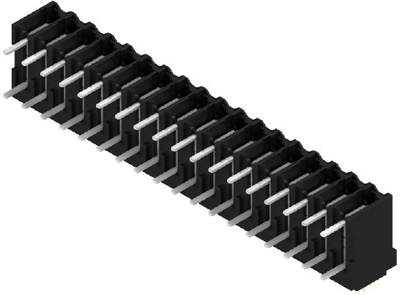

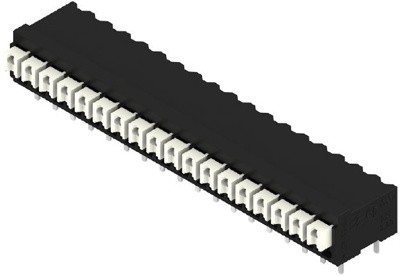

PCB terminal, 18 pole, pitch 3.5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1870430000
Order No.: 52P4118
EAN: 4032248447787
MPN:
1870430000
LSF-SMT 3.50/18/90 3.5SN BK TU
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
5.6644 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
5.66 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6644 €
10 pcs.
5.2836 €
50 pcs.
4.8076 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1870430000, WEIDMÜLLER

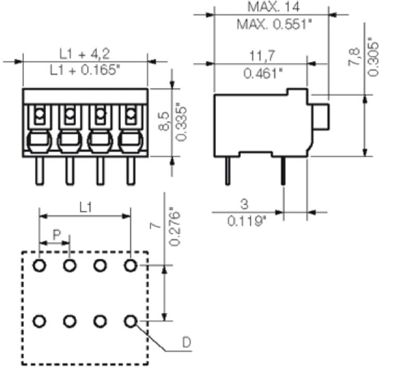

Printed circuit board terminals, 3.50 mm, number of poles: 18, 90°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction
Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 28-14 | |
| Width | 63.7 mm | |
| Colour | schwarz | |
| Height | 12 mm | |
| Cable cross-section | 0,13-1,5 mm² | |
| Rated voltage | 300 V | |
| Rated current | 12 A | |
| Pin number | 18-polig | |
| Grid | 3.5 mm | |
| Depth | 14.75 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
