1874600000 | Weidmüller

PCB terminal, 7 pole, pitch 3.5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1874600000

Order No.: 52P4384
EAN: 4032248459377
MPN:
1874600000
LSF-SMT 3.50/07/180 3.5SN BK RL

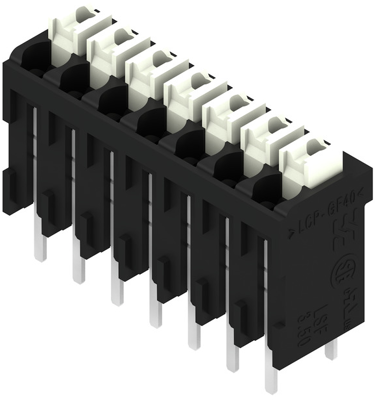

1874600000 Weidmüller PCB Terminal Blocks Image 1

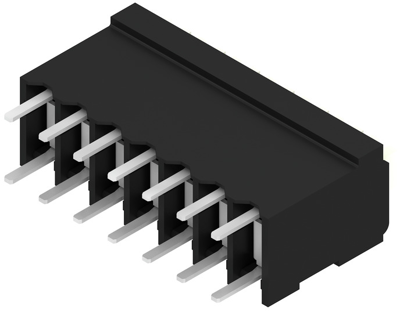

1874600000 Weidmüller PCB Terminal Blocks Image 2

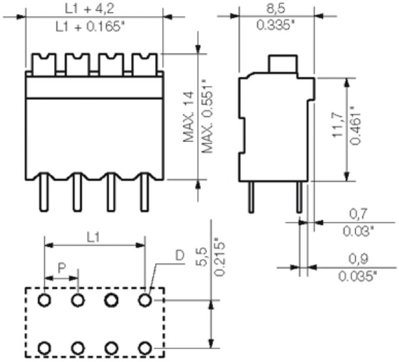

1874600000 Weidmüller PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
2.1777 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
2.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.1777 €

PCB terminal, 1874600000, WEIDMÜLLER

Printed circuit board terminals, 3.50 mm, number of poles: 7, 180°, Solder pin length: (l): 3.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².

Features

  • PCB terminal for fully automatic assembly in reflow soldering
  • With push-in conductor connection system
  • Conductor inserted and slider operated in same direction
Technical specifications
Anschluss Federklemmanschluss
AWG-Leiterquerschnitt AWG 28-14
Breite 25.2 mm
Farbe schwarz
Höhe 17.5 mm
Leiterquerschnitt 0,13-1,5 mm²
Nennspannung 300 V
Nennstrom 12 A
Polzahl 7-polig
Rastermaß 3.5 mm
Tiefe 7.8 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
