1876270000 | Weidmüller

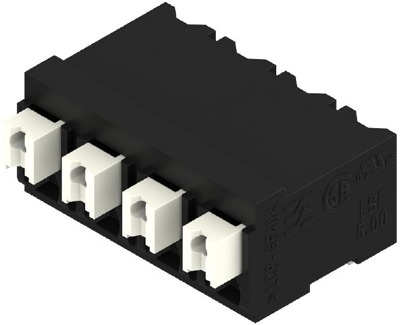

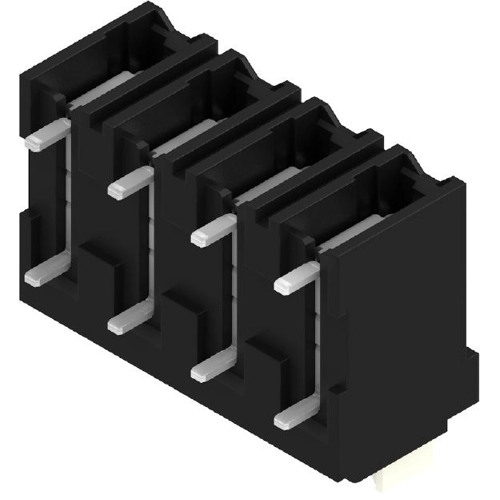

PCB terminal, 4 pole, pitch 5 mm, AWG 28-14, 12 A, spring-clamp connection, black, 1876270000
Order No.: 52P4531
EAN: 4032248466740
MPN:
1876270000
LSF-SMT 5.00/04/90 1.5SN BK RL
Series: OMNIMATE Signal - Serie LSF
Unit Price (€ / pc.)
1.4161 € *
Available: 0 pcs.
Available in 6 Days: 1,325 pcs.
Leadtime: 1 Week **
PCB terminal, 1876270000, WEIDMÜLLER
Printed circuit board terminals, 5.00 mm, number of poles: 4, 90°, Solder pin length: (l): 1.5 mm, black, push-in with actuator, clamping range, max.: 1.5 mm².
Features
- PCB terminal for fully automatic assembly in reflow soldering
- With push-in conductor connection system
- Conductor inserted and slider operated in same direction

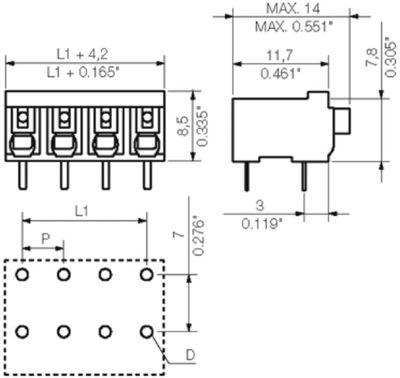

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 28-14 | |
| Breite | 19.2 mm | |
| Farbe | schwarz | |
| Höhe | 10 mm | |
| Leiterquerschnitt | 0,13-1,5 mm² | |
| Nennspannung | 300 V | |
| Nennstrom | 12 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 14.75 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
